#include "common/hardware/counters.h"
#include "common/syscalls/syscalls.h"
#include "installstdio.h"
#include "exotic/cester.h"

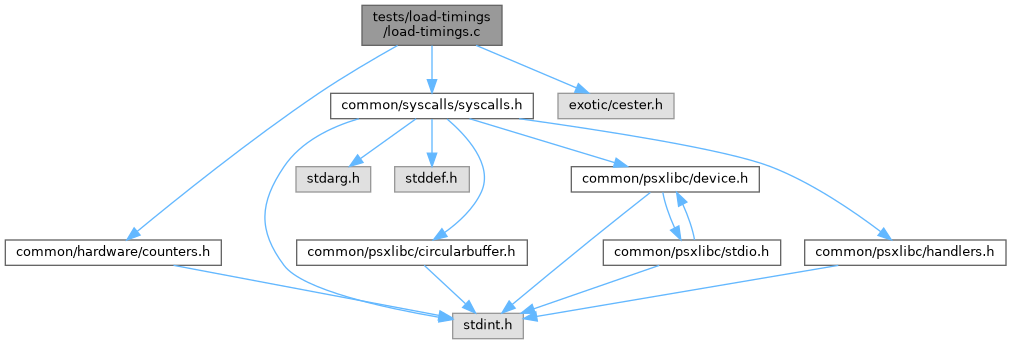

Include dependency graph for load-timings.c:

Macros
#define	PCSX_TESTS 0

#define	CESTER_MAYBE_TEST CESTER_TEST

#define	CESTER_NO_SIGNAL

#define	CESTER_NO_TIME

#define	EXIT_SUCCESS 0

#define	EXIT_FAILURE 1

#define	BIU_CONFIG_ADDR 0xfffe0130u

#define	BIU_EXPECTED 0x0001e988u

#define	N_READS 256

#define	N_LOADS 32

#define	REP4(x) x x x x

#define	REP16(x) REP4(x) REP4(x) REP4(x) REP4(x)

#define	REP32(x) REP16(x) REP16(x)

#define	REP64(x) REP16(x) REP16(x) REP16(x) REP16(x)

#define	REP128(x) REP64(x) REP64(x)

#define	REP256(x) REP64(x) REP64(x) REP64(x) REP64(x)

#define	ADDR_SCRATCH 0x1f800000u /* scratchpad SRAM (fast on-chip, no bus) */

#define	ADDR_ISTAT 0xbf801070u /* on-die MMIO: interrupt controller I_STAT */

#define	ADDR_DMA 0xbf8010a0u /* on-die MMIO: DMA channel 2 MADR */

#define	ADDR_RAM_C 0x80100000u /* main RAM, cached mirror (KSEG0) */

#define	ADDR_RAM_U 0xa0100000u /* main RAM, uncached mirror (KSEG1) */

#define	ADDR_BIOS 0xbfc00000u /* BIOS ROM (KSEG1) */

#define	ADDR_JOYSTAT 0xbf801044u /* on-die MMIO: controller port JOY_STAT */

#define	ADDR_GPUSTAT 0xbf801814u /* GPU status - the GPU is a separate chip */

#define	ADDR_MDECST 0xbf801824u /* MDEC status */

#define	ADDR_CDROM 0xbf801800u /* CD-ROM controller index/status (8-bit bus) */

#define	ADDR_SPU 0xbf801d80u /* SPU main volume left (16-bit bus) */

#define	MAKE_SPACED(name, seq)

#define	MAKE_GAP(name, op)

#define	MAKE_RAW(name, seq)

#define	SW16

#define	MAKE_PRIME(name, primers, tail)

#define	DEV2_DELAY ((volatile uint32_t )0xbf801010)

#define	DEV4_DELAY ((volatile uint32_t )0xbf801014)

#define	COM_DELAY ((volatile uint32_t )0xbf801020)

#define	CDROM_DELAY ((volatile uint32_t )0xbf801018)

#define	DELAY_REGS ((volatile uint32_t *)0xbf801010)

#define	PIN_COM_DELAY 0x00031125u

#define	PIN_CDROM_DELAY 0x00020843u

#define	ADDR_SPU_ADSR 0xbf801c08u /* voice 0 ADSR: unkeyed, harmless to write */

#define	N_BUS 64

#define	MAKE_BUS(name, insn)

#define	RUN8(lo, hi, expr)

#define	PRIME0 ""

#define	PRIME1 PRIME0 "sw $0, 0(%0)\n"

#define	PRIME2 PRIME1 "sw $0, 4(%0)\n"

#define	PRIME3 PRIME2 "sw $0, 8(%0)\n"

#define	PRIME4 PRIME3 "sw $0, 12(%0)\n"

#define	PRIME5 PRIME4 "sw $0, 16(%0)\n"

#define	PRIME6 PRIME5 "sw $0, 20(%0)\n"

#define	SWEEP_PAD ".rept 8\nnop\n.endr\n"

#define	SHADOW_REPS 16

#define	INTLCK_REPS 8

#define	INTLCK_LEN 48

#define	SWEEP_STR_(x) #x

#define	SWEEP_STR(x) SWEEP_STR_(x)

#define	MAKE_SHADOW(name, op, s)

#define	MAKE_INTLCK(name, op, use, k)

#define	SHADOW_POINTS(X)

#define	INTLCK_POINTS(X)

#define	SWEEP_LIST(n) n,

#define	SHADOW_COUNT (sizeof(s_shadowPoints) / sizeof(s_shadowPoints[0]))

#define	INTLCK_COUNT (sizeof(s_intlckPoints) / sizeof(s_intlckPoints[0]))

#define	SHADOW_CHECK 8

#define	SHADOW_FNS(s)

#define	INTLCK_FNS(k)

#define	SHADOW_RUN_W(s) { BENCH(x, shadow_w_##s, M); BENCH(y, shadow_n_##s, M); a[i] = x; b[i] = y; i++; }

#define	SHADOW_RUN_B(s) { BENCH(x, shadow_b_##s, M); BENCH(y, shadow_n_##s, M); a[i] = x; b[i] = y; i++; }

#define	INTLCK_RUN_W(k) { BENCH(x, intlck_w_##k, M); a[i] = x; b[i] = base; i++; }

#define	INTLCK_RUN_B(k) { BENCH(x, intlck_b_##k, M); a[i] = x; b[i] = base; i++; }

#define	BENCH(ret, fn, p)

#define	SWEEP_TARGETS (sizeof(s_sweepTargets) / sizeof(s_sweepTargets[0]))

Functions
	CESTER_BODY (static int s_interruptsWereEnabled;static uint32_t s_entryDelay[5];static void pinDelayRegs(void) { COM_DELAY=PIN_COM_DELAY;CDROM_DELAY=PIN_CDROM_DELAY;} static __attribute__((always_inline)) uint32_t timed_read(volatile void p) { register uint32_t sink;uint16_t before, after;before=COUNTERS[2].value;__asm__ volatile(REP256("lw %0, 0(%1)\n") :"=&r"(sink) :"r"(p) :"memory");after=COUNTERS[2].value;(void) sink;return(uint16_t)(after - before);} static __attribute__((always_inline)) uint32_t timed_nop(volatile void p) { register uint32_t sink;uint16_t before, after;before=COUNTERS[2].value;__asm__ volatile(REP256("nop\n") :"=&r"(sink) :"r"(p) :"memory");after=COUNTERS[2].value;(void) sink;return(uint16_t)(after - before);} static __attribute__((always_inline)) uint32_t timed_pair(volatile void a, volatile void b) { register uint32_t sink;uint16_t before, after;before=COUNTERS[2].value;__asm__ volatile(REP128("lw %0, 0(%1)\nlw %0, 0(%2)\n") :"=&r"(sink) :"r"(a), "r"(b) :"memory");after=COUNTERS[2].value;(void) sink;return(uint16_t)(after - before);} static __attribute__((always_inline)) uint32_t timed_write(volatile void p) { uint16_t before, after;register volatile char q=(volatile char ) p;before=COUNTERS[2].value;__asm__ volatile(REP256("sw $0, 0(%0)\naddiu %0, %0, 4\n") :"+r"(q) ::"memory");after=COUNTERS[2].value;return(uint16_t)(after - before);} static __attribute__((always_inline)) uint32_t timed_walk(volatile void p) { uint16_t before, after;register volatile char q=(volatile char ) p;before=COUNTERS[2].value;__asm__ volatile(REP256("nop\naddiu %0, %0, 4\n") :"+r"(q) ::"memory");after=COUNTERS[2].value;return(uint16_t)(after - before);} static __attribute__((always_inline)) uint32_t timed_burst(volatile void p) { uint16_t before, after;before=COUNTERS[2].value;__asm__ volatile(REP16(SW16) ::"r"(p) :"memory");after=COUNTERS[2].value;return(uint16_t)(after - before);} typedef uint32_t(PrimeFn)(volatile void , volatile void );static void primeRow(int n, PrimeFn sync, PrimeFn base, volatile void c, volatile void u) { uint32_t bs=0xffffu, bb=0xffffu;for(int i=0;i< 8;i++) { uint32_t x=sync(c, u);uint32_t y=base(c, u);if(x< bs) bs=x;if(y< bb) bb=y;} ramsyscall_printf(" PRIME n=%d sync=%u base=%u delta=%d\n", n, bs, bb,(int) bs -(int) bb);} MAKE_RAW(raw_same, "sw $0, 0(%1)\nlw %0, 0(%1)\nnop\naddiu %0, %0, 1\n") MAKE_RAW(raw_other, "sw $0, 0(%1)\nlw %0, 0(%2)\nnop\naddiu %0, %0, 1\n") typedef struct { const char name;uint32_t clr, set, flip;int nib;uint32_t val;} BusArm;static const BusArm s_busArms[]={ {"base", 0, 0, 0, -1, 0}, {"b8^", 0, 0, 0x100, -1, 0}, {"b9^", 0, 0, 0x200, -1, 0}, {"b10^", 0, 0, 0x400, -1, 0}, {"b11^", 0, 0, 0x800, -1, 0}, {"b8-11", 0, 0xf00, 0, -1, 0}, {"rd0", 0xf0, 0, 0, -1, 0}, {"rd15", 0, 0xf0, 0, -1, 0}, {"wr0", 0xf, 0, 0, -1, 0}, {"wr15", 0, 0xf, 0, -1, 0}, {"com0=0", 0, 0x100, 0, 0, 0}, {"com0=5", 0, 0x100, 0, 0, 5}, {"com0=15", 0, 0x100, 0, 0, 15}, {"com1=0", 0, 0x200, 0, 1, 0}, {"com1=5", 0, 0x200, 0, 1, 5}, {"com1=15", 0, 0x200, 0, 1, 15}, {"com2=0", 0, 0x400, 0, 2, 0}, {"com2=5", 0, 0x400, 0, 2, 5}, {"com2=15", 0, 0x400, 0, 2, 15}, {"com3=0", 0, 0x800, 0, 3, 0}, {"com3=5", 0, 0x800, 0, 3, 5}, {"com3=15", 0, 0x800, 0, 3, 15}, {"base", 0, 0, 0, -1, 0}, };typedef struct { uint32_t cd, com;uint32_t cdrom, spu;} CdArm;static const CdArm s_cdArms[]={ {0x00020843u, 0x00031125u, 646, 1349}, {0x00020843u, 0x0000132cu, 646, 1790}, {0x00020943u, 0x00031125u, 709, 1349}, {0x00020943u, 0x0000132cu, 1150, 1790}, };#define BENCH(ret, fn, p) static void report(const char name, uint32_t raw, uint32_t base) { uint32_t abs_cc=(raw 100u+N_READS/2)/N_READS;uint32_t marg_cc=((raw - base) 100u+N_READS/2)/N_READS;ramsyscall_printf(" %s raw256=%u abs=%u.%02u marginal=%u.%02u cyc/read\n", name, raw, abs_cc/100u, abs_cc % 100u, marg_cc/100u, marg_cc % 100u);} static const uint8_t s_shadowPoints[]={ SHADOW_POINTS(SWEEP_LIST) };static const uint8_t s_intlckPoints[]={ INTLCK_POINTS(SWEEP_LIST) };static void sweepPrint(const char sweep, const char op, const char target, const uint8_t points, unsigned count, const uint32_t a, const uint32_t b, unsigned reps) { ramsyscall_printf(" %s %s %s ticks:", sweep, op, target);for(unsigned i=0;i< count;i++) ramsyscall_printf(" %u=%u", points[i], a[i]);ramsyscall_printf("\n %s %s %s base :", sweep, op, target);for(unsigned i=0;i< count;i++) ramsyscall_printf(" %u=%u", points[i], b[i]);ramsyscall_printf("\n %s %s %s cyc :", sweep, op, target);for(unsigned i=0;i< count;i++) { int d=(int) a[i] -(int) b[i];unsigned m=(unsigned)(d< 0 ? -d :d);unsigned cc=(m 100u+reps/2u)/reps;ramsyscall_printf(" %u=%s%u.%02u", points[i], d< 0 ? "-" :"", cc/100u, cc % 100u);} ramsyscall_printf("\n");} static __attribute__((noinline)) uint32_t shadowSweepW(const char target, volatile void M, uint32_t a, uint32_t b) { unsigned i=0;sweepPrint("SHADOW", "lw ", target, s_shadowPoints, SHADOW_COUNT, a, b, SHADOW_REPS);return a[SHADOW_CHECK] - b[SHADOW_CHECK];} static __attribute__((noinline)) uint32_t shadowSweepB(const char target, volatile void M, uint32_t a, uint32_t b) { unsigned i=0;sweepPrint("SHADOW", "lbu", target, s_shadowPoints, SHADOW_COUNT, a, b, SHADOW_REPS);return a[SHADOW_CHECK] - b[SHADOW_CHECK];} static __attribute__((noinline)) void intlckSweepW(const char target, volatile void M, uint32_t a, uint32_t b) { unsigned i=0;BENCH(base, intlck_w_base, M);sweepPrint("INTLCK", "lw ", target, s_intlckPoints, INTLCK_COUNT, a, b, INTLCK_REPS);} static __attribute__((noinline)) void intlckSweepB(const char target, volatile void M, uint32_t a, uint32_t b) { unsigned i=0;BENCH(base, intlck_b_base, M);sweepPrint("INTLCK", "lbu", target, s_intlckPoints, INTLCK_COUNT, a, b, INTLCK_REPS);} static const uint16_t s_shNop[]={35, 51, 67, 83, 99, 115, 131, 147, 163, 179, 195, 211, 227, 259, 291, 355, 419, 547, 675, 803};static const uint16_t s_shMmio[]={97, 113, 129, 130, 131, 147, 163, 179, 195, 211, 227, 243, 259, 291, 323, 387, 451, 579, 707, 835};static const uint16_t s_shRam[]={127, 143, 159, 160, 161, 162, 163, 179, 195, 211, 227, 243, 259, 291, 323, 387, 451, 579, 707, 835};static const uint16_t s_shRomW[]={445, 460, 475, 475, 475, 475, 475, 475, 475, 475, 475, 475, 475, 475, 475, 477, 481, 579, 707, 835};static const uint16_t s_shRomB[]={157, 173, 189, 190, 191, 192, 193, 194, 195, 211, 227, 243, 259, 291, 323, 387, 451, 579, 707, 835};static const uint16_t s_shCdrom[]={173, 188, 204, 205, 206, 207, 208, 209, 210, 211, 227, 243, 259, 291, 323, 387, 451, 579, 707, 835};static const uint16_t s_shSpu[]={348, 348, 363, 363, 363, 363, 363, 363, 363, 363, 363, 363, 364, 366, 368, 387, 451, 579, 707, 835};static const uint16_t s_ilMmio[]={443, 443, 443, 435, 427, 427, 427, 427, 427, 427, 427, 427, 427, 427, 427, 427, 427, 427, 427};static const uint16_t s_ilScratch[]={411, 411, 411, 411, 411, 411, 411, 411, 411, 411, 411, 411, 411, 411, 411, 411, 411, 411, 411};static const uint16_t s_ilRam[]={459, 459, 459, 451, 443, 435, 427, 427, 427, 427, 427, 427, 427, 427, 427, 427, 427, 427, 427};static const uint16_t s_ilRomW[]={619, 619, 619, 611, 603, 595, 587, 579, 571, 563, 555, 547, 531, 515, 483, 451, 427, 427, 427};static const uint16_t s_ilRomB[]={475, 475, 475, 467, 459, 451, 443, 435, 427, 427, 427, 427, 427, 427, 427, 427, 427, 427, 427};static const uint16_t s_ilCdrom[]={483, 483, 483, 475, 467, 459, 451, 443, 435, 427, 427, 427, 427, 427, 427, 427, 427, 427, 427};static const uint16_t s_ilSpu[]={563, 563, 563, 555, 547, 539, 531, 523, 515, 507, 499, 491, 475, 459, 427, 427, 427, 427, 427};typedef struct { const char name;uint32_t addr;int byte;const uint16_t shadow, intlck;uint32_t intlckBase;} SweepTarget;static const SweepTarget s_sweepTargets[]={ {"I_STAT ", ADDR_ISTAT, 0, s_shMmio, s_ilMmio, 427}, {"JOY_STAT ", ADDR_JOYSTAT, 0, s_shMmio, s_ilMmio, 427}, {"GPUSTAT ", ADDR_GPUSTAT, 0, s_shMmio, s_ilMmio, 427}, {"MDEC stat ", ADDR_MDECST, 0, s_shMmio, s_ilMmio, 427}, {"scratchpad", ADDR_SCRATCH, 0, s_shNop, s_ilScratch, 411}, {"RAM cached", ADDR_RAM_C, 0, s_shRam, s_ilRam, 427}, {"RAM uncach", ADDR_RAM_U, 0, s_shRam, s_ilRam, 427}, {"BIOS ROM ", ADDR_BIOS, 0, s_shRomW, s_ilRomW, 427}, {"I_STAT ", ADDR_ISTAT, 1, s_shMmio, s_ilMmio, 427}, {"RAM uncach", ADDR_RAM_U, 1, s_shRam, s_ilRam, 427}, {"BIOS ROM ", ADDR_BIOS, 1, s_shRomB, s_ilRomB, 427}, {"CD-ROM ", ADDR_CDROM, 1, s_shCdrom, s_ilCdrom, 427}, {"SPU ", ADDR_SPU, 1, s_shSpu, s_ilSpu, 427}, };#define SWEEP_TARGETS static unsigned sweepMismatches(const char sweep, const char what, const SweepTarget t, const uint8_t points, unsigned count, const uint32_t got, const uint16_t row, uint32_t flat) { unsigned bad=0;for(unsigned i=0;i< count;i++) { uint32_t want=row ? row[i] :flat;if(got[i]==want) continue;ramsyscall_printf(" MISMATCH %s %s %s %s %u: got %u, expected %u\n", sweep, t->byte ? "lbu" :"lw ", t->name, what, points[i], got[i], want);bad++;} return bad;}) CESTER_BEFORE_ALL(load_tests

	for (int i=0;i< 5;i++) s_entryDelay[i]

	pinDelayRegs ()

	CESTER_AFTER_ALL (load_tests, for(int i=0;i< 5;i++) DELAY_REGS[i]=s_entryDelay[i];if(s_interruptsWereEnabled) leaveCriticalSection();) CESTER_BEFORE_EACH(load_tests

	CESTER_AFTER_EACH (CESTER_TEST(load_tests, testname, testindex)

	cester_assert_true (d0<=(uint32_t) N_READS/8u)

	CESTER_MAYBE_TEST (loadCostByGap, load_tests, volatile void A=(volatile void ) ADDR_RAM_U;ramsyscall_printf("=== load cost by inter-access gap (32 reps, one uncached RAM address) ===\n");ramsyscall_printf(" Format: GAP d=<delay loop count> load=<ticks> nop=<ticks> delta=<ticks per 32 loads>\n");for(uint32_t d=1;d<=48;d++) { uint32_t bl=0xffffu, bn=0xffffu;for(int i=0;i< 8;i++) { uint32_t x=gap_load(A, d);uint32_t y=gap_nop(A, d);if(x< bl) bl=x;if(y< bn) bn=y;} ramsyscall_printf(" GAP d=%u load=%u nop=%u delta=%u\n", d, bl, bn, bl > bn ? bl - bn :0u);}) CESTER_MAYBE_TEST(storeCostByMirror

	BENCH (base, timed_walk,(volatile void *) ADDR_RAM_C)

	BENCH (w_c, timed_write,(volatile void *) ADDR_RAM_C)

	BENCH (w_u, timed_write,(volatile void *) ADDR_RAM_U)

	BENCH (nb, timed_nop,(volatile void *) ADDR_ISTAT)

	BENCH (b_c, timed_burst,(volatile void *) ADDR_RAM_C)

	BENCH (b_u, timed_burst,(volatile void *) ADDR_RAM_U)

	ramsyscall_printf ("=== store cost by mirror (N=%d sequential words) ===\n", N_READS)

	report ("store KSEG0:", w_c, base)

	report ("store KSEG1:", w_u, base)

	ramsyscall_printf (" --- saturating burst, 1 instr/store, nop baseline raw256=%u ---\n", nb)

	report ("burst KSEG0:", b_c, nb)

	report ("burst KSEG1:", b_u, nb)

	CESTER_MAYBE_TEST (kseg1StoreSync, load_tests, volatile void C=(volatile void ) ADDR_RAM_C;volatile void U=(volatile void ) ADDR_RAM_U;ramsyscall_printf("=== KSEG1 store sync vs primed queue depth (16 reps) ===\n");ramsyscall_printf(" Format: PRIME n=<KSEG0 stores ahead> sync=<ticks> base=<ticks> delta=<ticks per 16>\n");primeRow(0, prime0, pbase0, C, U);primeRow(1, prime1, pbase1, C, U);primeRow(2, prime2, pbase2, C, U);primeRow(3, prime3, pbase3, C, U);primeRow(4, prime4, pbase4, C, U);primeRow(5, prime5, pbase5, C, U);primeRow(6, prime6, pbase6, C, U);) CESTER_MAYBE_TEST(readAfterWrite

	CESTER_MAYBE_TEST (onDieUniformity, CESTER_MAYBE_TEST(load_tests, BENCH(istat, timed_read,(volatile void ) ADDR_ISTAT);BENCH(dma, timed_read,(volatile void ) ADDR_DMA);BENCH(rcnt0, timed_read,(volatile void )&COUNTERS[0].value);BENCH(rcnt2, timed_read,(volatile void )&COUNTERS[2].value);ramsyscall_printf("=== on-die uniformity ===\n");ramsyscall_printf(" I_STAT=%u DMA=%u RCNT0=%u RCNT2=%u\n", istat, dma, rcnt0, rcnt2);cester_assert_uint_eq(istat, dma);cester_assert_uint_eq(istat, rcnt0);cester_assert_uint_eq(istat, rcnt2);)

	cester_assert_uint_eq ((uint32_t) SHADOW_REPS *2u, check)

	CESTER_MAYBE_TEST (loadInterlockedByTarget, load_tests, ramsyscall_printf("=== load-interlocked sweep by target (%d loads, result read k instructions later) ===\n", INTLCK_REPS);ramsyscall_printf(" Format: <k>=<value>. ticks = result read, base = result not read, cyc = (ticks - base) / %d\n", INTLCK_REPS);uint32_t a[INTLCK_COUNT], b[INTLCK_COUNT];for(unsigned t=0;t< SWEEP_TARGETS;t++) { const SweepTarget st=&s_sweepTargets[t];volatile void M=(volatile void *) st->addr;if(st->byte) intlckSweepB(st->name, M, a, b);else intlckSweepW(st->name, M, a, b);unsigned bad=sweepMismatches("INTLCK", "k", st, s_intlckPoints, INTLCK_COUNT, a, st->intlck, 0);unsigned badBase=sweepMismatches("INTLCK", "base k", st, s_intlckPoints, INTLCK_COUNT, b, 0, st->intlckBase);cester_assert_uint_eq(0, bad);cester_assert_uint_eq(0, badBase);}) CESTER_TEST(busRegistersAtEntry

	for (uint32_t a=0xbf801000u;a<=0xbf801020u;a+=4u)

	cester_assert_uint_eq (PIN_COM_DELAY, COM_DELAY)

	cester_assert_uint_eq (PIN_CDROM_DELAY, CDROM_DELAY)

	CESTER_MAYBE_TEST (busDelaySweep, load_tests, volatile void rom=(volatile void ) ADDR_BIOS;volatile void spu=(volatile void ) ADDR_SPU_ADSR;uint32_t dev2=DEV2_DELAY, dev4=DEV4_DELAY, com=COM_DELAY;uint32_t nlo, nhi;RUN8(nlo, nhi, bus_nop(rom));ramsyscall_printf("=== bus delay sweep (N=%d, entry dev2=%08x dev4=%08x com=%08x) ===\n", N_BUS, dev2, dev4, com);ramsyscall_printf(" Format: BUSn <arm> dev=<reg> com=<reg> <access>=<min>/<max> ...\n");ramsyscall_printf(" BUSNOP nop=%u/%u\n", nlo, nhi);int subjects=0;uint32_t first2=0, last2=0, first4=0, last4=0;uint32_t nocom2[3]={0, 0, 0}, nocom4=0;int n=(int)(sizeof(s_busArms)/sizeof(s_busArms[0]));for(int d=0;d< 2;d++) { volatile uint32_t reg=d==0 ? &DEV2_DELAY :&DEV4_DELAY;uint32_t v0= reg;for(int k=0;k< n;k++) { const BusArm arm=&s_busArms[k];uint32_t cfg=((v0 &~arm->clr)\|arm->set) ^ arm->flip;uint32_t c=com;if(arm->nib >=0) c=(com &~(0xfu<<(4 arm->nib)))\|(arm->val<<(4 arm->nib));uint32_t alo, ahi, blo, bhi, clo, chi, dlo=0, dhi=0;COM_DELAY=c; reg=cfg;if(d==0) { RUN8(alo, ahi, bus_lw(rom));RUN8(blo, bhi, bus_lh(rom));RUN8(clo, chi, bus_lb(rom));} else { RUN8(alo, ahi, bus_sh(spu));RUN8(blo, bhi, bus_sw(spu));RUN8(clo, chi, bus_lhs(spu));RUN8(dlo, dhi, bus_lws(spu));} reg=v0;COM_DELAY=com;if(d==0) { ramsyscall_printf(" BUS2 %-8s dev=%08x com=%08x lw=%u/%u lh=%u/%u lb=%u/%u\n", arm->name, cfg, c, alo, ahi, blo, bhi, clo, chi);if(k==0) first2=alo;if(k==3) { nocom2[0]=alo;nocom2[1]=blo;nocom2[2]=clo;} last2=alo;} else { ramsyscall_printf(" BUS4 %-8s dev=%08x com=%08x sh=%u/%u sw=%u/%u lh=%u/%u lw=%u/%u\n", arm->name, cfg, c, alo, ahi, blo, bhi, clo, chi, dlo, dhi);if(k==0) first4=blo;if(k==1) nocom4=dlo;last4=blo;} subjects++;} } uint32_t cd=CDROM_DELAY;int ncd=(int)(sizeof(s_cdArms)/sizeof(s_cdArms[0]));uint32_t cdlo[sizeof(s_cdArms)/sizeof(s_cdArms[0])], splo[sizeof(s_cdArms)/sizeof(s_cdArms[0])];for(int k=0;k< ncd;k++) { const CdArm arm=&s_cdArms[k];uint32_t clo, chi, slo, shi;COM_DELAY=arm->com;CDROM_DELAY=arm->cd;RUN8(clo, chi, bus_lbu((volatile void ) ADDR_CDROM));RUN8(slo, shi, bus_lbu((volatile void ) ADDR_SPU));CDROM_DELAY=cd;COM_DELAY=com;ramsyscall_printf(" BUS5 cd=%08x com=%08x lbu-cdrom=%u/%u lbu-spu=%u/%u\n", arm->cd, arm->com, clo, chi, slo, shi);cdlo[k]=clo;splo[k]=slo;subjects++;} ramsyscall_printf(" BUS subjects=%d\n", subjects);cester_assert_int_eq(2 *n+ncd, subjects);cester_assert_uint_eq(dev2, DEV2_DELAY);cester_assert_uint_eq(dev4, DEV4_DELAY);cester_assert_uint_eq(com, COM_DELAY);cester_assert_uint_eq(cd, CDROM_DELAY);cester_assert_uint_eq(first2, last2);uint32_t d4=first4 > last4 ? first4 - last4 :last4 - first4;cester_assert_true(d4<=(uint32_t) N_BUS/8u);if(dev2==0x0013243fu) { cester_assert_uint_eq(1542, nocom2[0]);cester_assert_uint_eq(902, nocom2[1]);cester_assert_uint_eq(582, nocom2[2]);} if(dev4==0x200931e1u) cester_assert_uint_eq(2310, nocom4);for(int k=0;k< ncd;k++) { cester_assert_uint_eq(s_cdArms[k].cdrom, cdlo[k]);cester_assert_uint_eq(s_cdArms[k].spu, splo[k]);}) CESTER_OPTIONS(CESTER_VERBOSE()

Variables
	s_interruptsWereEnabled = enterCriticalSection()

COUNTERS[2]	mode = 0

	testname

	testindex

uint32_t	d0 = stride0 > ref ? stride0 - ref : ref - stride0

	load_tests

volatile void *	c0 = (volatile void *)ADDR_RAM_C

volatile void *	c1 = (volatile void *)(ADDR_RAM_C + 4096u)

volatile void *	u0 = (volatile void *)ADDR_RAM_U

volatile void *	u1 = (volatile void *)(ADDR_RAM_U + 4096u)

uint32_t	sc = 0xffffu

uint32_t	oc = 0xffffu

uint32_t	su = 0xffffu

uint32_t	ou = 0xffffu

uint32_t	nl = 0xffffu

Macro Definition Documentation

◆ ADDR_BIOS

#define ADDR_BIOS 0xbfc00000u /* BIOS ROM (KSEG1) */

◆ ADDR_CDROM

#define ADDR_CDROM 0xbf801800u /* CD-ROM controller index/status (8-bit bus) */

◆ ADDR_DMA

#define ADDR_DMA 0xbf8010a0u /* on-die MMIO: DMA channel 2 MADR */

◆ ADDR_GPUSTAT

#define ADDR_GPUSTAT 0xbf801814u /* GPU status - the GPU is a separate chip */

◆ ADDR_ISTAT

#define ADDR_ISTAT 0xbf801070u /* on-die MMIO: interrupt controller I_STAT */

◆ ADDR_JOYSTAT

#define ADDR_JOYSTAT 0xbf801044u /* on-die MMIO: controller port JOY_STAT */

◆ ADDR_MDECST

#define ADDR_MDECST 0xbf801824u /* MDEC status */

◆ ADDR_RAM_C

#define ADDR_RAM_C 0x80100000u /* main RAM, cached mirror (KSEG0) */

◆ ADDR_RAM_U

#define ADDR_RAM_U 0xa0100000u /* main RAM, uncached mirror (KSEG1) */

◆ ADDR_SCRATCH

#define ADDR_SCRATCH 0x1f800000u /* scratchpad SRAM (fast on-chip, no bus) */

◆ ADDR_SPU

#define ADDR_SPU 0xbf801d80u /* SPU main volume left (16-bit bus) */

◆ ADDR_SPU_ADSR

#define ADDR_SPU_ADSR 0xbf801c08u /* voice 0 ADSR: unkeyed, harmless to write */

◆ BENCH

#define BENCH	(	ret,
		fn,
		p
	)

Value:

        uint32_t ret; do { \
        uint32_t best = 0xffffu;             \
        for (int i = 0; i < 8; i++) {        \
            uint32_t skew = i * 19u;         \
            __asm__ volatile(".set push\n.set noreorder\n1: bnez %0, 1b\naddiu %0, %0, -1\n.set pop\n" \
                             : "+r"(skew));  \
            uint32_t d = fn(p);              \
            if (d < best) best = d;          \
        }                                    \
        ret = best;                          \
    } while (0);

◆ BIU_CONFIG_ADDR

#define BIU_CONFIG_ADDR 0xfffe0130u

◆ BIU_EXPECTED

#define BIU_EXPECTED 0x0001e988u

◆ CDROM_DELAY

#define CDROM_DELAY (*(volatile uint32_t *)0xbf801018)

◆ CESTER_MAYBE_TEST

#define CESTER_MAYBE_TEST CESTER_TEST

◆ CESTER_NO_SIGNAL

#define CESTER_NO_SIGNAL

◆ CESTER_NO_TIME

#define CESTER_NO_TIME

◆ COM_DELAY

#define COM_DELAY (*(volatile uint32_t *)0xbf801020)

◆ DELAY_REGS

#define DELAY_REGS ((volatile uint32_t *)0xbf801010)

◆ DEV2_DELAY

#define DEV2_DELAY (*(volatile uint32_t *)0xbf801010)

◆ DEV4_DELAY

#define DEV4_DELAY (*(volatile uint32_t *)0xbf801014)

◆ EXIT_FAILURE

#define EXIT_FAILURE 1

◆ EXIT_SUCCESS

#define EXIT_SUCCESS 0

◆ INTLCK_COUNT

#define INTLCK_COUNT (sizeof(s_intlckPoints) / sizeof(s_intlckPoints[0]))

◆ INTLCK_FNS

#define INTLCK_FNS ( k )

Value:

MAKE_INTLCK(intlck_w_##k, "lw %0, 0(%1)", "addiu %0, %0, 1", k) \

MAKE_INTLCK(intlck_b_##k, "lbu %0, 0(%1)", "addiu %0, %0, 1", k)

MAKE_INTLCK

#define MAKE_INTLCK(name, op, use, k)

Definition load-timings.c:298

◆ INTLCK_LEN

#define INTLCK_LEN 48

◆ INTLCK_POINTS

#define INTLCK_POINTS ( X )

Value:

X(1) X(2) X(3) X(4) X(5) X(6) X(7) X(8) X(9) X(10) X(11) X(12) \

X(14) X(16) X(20) X(24) X(32) X(40) X(48)

◆ INTLCK_REPS

#define INTLCK_REPS 8

◆ INTLCK_RUN_B

#define INTLCK_RUN_B ( k ) { BENCH(x, intlck_b_##k, M); a[i] = x; b[i] = base; i++; }

◆ INTLCK_RUN_W

#define INTLCK_RUN_W ( k ) { BENCH(x, intlck_w_##k, M); a[i] = x; b[i] = base; i++; }

◆ MAKE_BUS

#define MAKE_BUS	(	name,
		insn
	)

Value:

    static __attribute__((always_inline)) uint32_t name(volatile void *p) {    \
        register uint32_t sink = 0;                                             \
        uint16_t before, after;                                                 \
        before = COUNTERS[2].value;                                             \
        __asm__ volatile(REP64(insn "\n") : "+r"(sink) : "r"(p) : "memory");    \
        after = COUNTERS[2].value;                                              \
        (void)sink;                                                             \
        return (uint16_t)(after - before);                                      \
    }

◆ MAKE_GAP

#define MAKE_GAP	(	name,
		op
	)

Value:

    static __attribute__((always_inline)) uint32_t name(volatile void *p, uint32_t d) { \
        register uint32_t sink;                                                         \
        uint16_t before, after;                                                         \
        before = COUNTERS[2].value;                                                     \
        __asm__ volatile(REP32(op "\n"                                                  \
                               "nop\n"                                                  \
                               "addiu %0, %0, 1\n"                                      \
                               "move $t9, %2\n"                                         \
                               "1: addiu $t9, $t9, -1\n"                                \
                               "bgtz $t9, 1b\n"                                         \
                               "nop\n")                                                 \
                         : "=&r"(sink) : "r"(p), "r"(d) : "$t9", "memory");             \
        after = COUNTERS[2].value;                                                       \
        (void)sink;                                                                      \
        return (uint16_t)(after - before);                                              \
    }

◆ MAKE_INTLCK

#define MAKE_INTLCK	(	name,
		op,
		use,
		k
	)

Value:

    static __attribute__((always_inline)) uint32_t name(volatile void *p) {    \
        register uint32_t sink;                                                \
        uint16_t before, after;                                                \
        before = COUNTERS[2].value;                                            \
        __asm__ volatile(".set push\n.set noreorder\n" SWEEP_PAD               \
                         ".rept " SWEEP_STR(INTLCK_REPS) "\n" op "\n"         \
                         ".rept " #k " - 1\nnop\n.endr\n"                      \
                         use "\n"                                              \
                         ".rept " SWEEP_STR(INTLCK_LEN) " - " #k "\nnop\n.endr\n" \
                         ".endr\n" SWEEP_PAD ".set pop\n"                      \
                         : "=&r"(sink) : "r"(p) : "memory");                   \
        after = COUNTERS[2].value;                                             \
        (void)sink;                                                            \
        return (uint16_t)(after - before);                                     \
    }

◆ MAKE_PRIME

#define MAKE_PRIME	(	name,
		primers,
		tail
	)

Value:

    static __attribute__((always_inline)) uint32_t name(volatile void *c, volatile void *u) { \
        uint16_t before, after;                                                               \
        before = COUNTERS[2].value;                                                           \
        __asm__ volatile(REP16(primers tail) : : "r"(c), "r"(u) : "memory");                  \
        after = COUNTERS[2].value;                                                            \
        return (uint16_t)(after - before);                                                    \
    }

◆ MAKE_RAW

#define MAKE_RAW	(	name,
		seq
	)

Value:

    static __attribute__((always_inline)) uint32_t name(volatile void *p, volatile void *q) { \
        register uint32_t sink;                                                               \
        uint16_t before, after;                                                               \
        before = COUNTERS[2].value;                                                           \
        __asm__ volatile(REP32(seq) : "=&r"(sink) : "r"(p), "r"(q) : "memory");                \
        after = COUNTERS[2].value;                                                             \
        (void)sink;                                                                            \
        return (uint16_t)(after - before);                                                    \
    }

◆ MAKE_SHADOW

#define MAKE_SHADOW	(	name,
		op,
		s
	)

Value:

    static __attribute__((always_inline)) uint32_t name(volatile void *p) {    \
        register uint32_t sink;                                                \
        uint16_t before, after;                                                \
        before = COUNTERS[2].value;                                            \
        __asm__ volatile(".set push\n.set noreorder\n" SWEEP_PAD               \
                         ".rept " SWEEP_STR(SHADOW_REPS) "\n" op "\n"         \
                         ".rept " #s "\nnop\n.endr\n.endr\n"               \
                         SWEEP_PAD ".set pop\n"                                \
                         : "=&r"(sink) : "r"(p) : "memory");                   \
        after = COUNTERS[2].value;                                             \
        (void)sink;                                                            \
        return (uint16_t)(after - before);                                     \
    }

◆ MAKE_SPACED

#define MAKE_SPACED	(	name,
		seq
	)

Value:

    static __attribute__((always_inline)) uint32_t name(volatile void *p) {                              \
        register uint32_t sink;                                           \
        uint16_t before, after;                                           \
        before = COUNTERS[2].value;                                       \
        __asm__ volatile(REP32(seq) : "=&r"(sink) : "r"(p) : "memory");   \
        after = COUNTERS[2].value;                                        \
        (void)sink;                                                       \
        return (uint16_t)(after - before);                               \
    }

◆ N_BUS

#define N_BUS 64

◆ N_LOADS

#define N_LOADS 32

◆ N_READS

#define N_READS 256

◆ PCSX_TESTS

#define PCSX_TESTS 0

◆ PIN_CDROM_DELAY

#define PIN_CDROM_DELAY 0x00020843u

◆ PIN_COM_DELAY

#define PIN_COM_DELAY 0x00031125u

◆ PRIME0

#define PRIME0 ""

◆ PRIME1

#define PRIME1 PRIME0 "sw $0, 0(%0)\n"

◆ PRIME2

#define PRIME2 PRIME1 "sw $0, 4(%0)\n"

◆ PRIME3

#define PRIME3 PRIME2 "sw $0, 8(%0)\n"

◆ PRIME4

#define PRIME4 PRIME3 "sw $0, 12(%0)\n"

◆ PRIME5

#define PRIME5 PRIME4 "sw $0, 16(%0)\n"

◆ PRIME6

#define PRIME6 PRIME5 "sw $0, 20(%0)\n"

◆ REP128

#define REP128 ( x ) REP64(x) REP64(x)

◆ REP16

#define REP16 ( x ) REP4(x) REP4(x) REP4(x) REP4(x)

◆ REP256

#define REP256 ( x ) REP64(x) REP64(x) REP64(x) REP64(x)

◆ REP32

#define REP32 ( x ) REP16(x) REP16(x)

◆ REP4

#define REP4 ( x ) x x x x

◆ REP64

#define REP64 ( x ) REP16(x) REP16(x) REP16(x) REP16(x)

◆ RUN8

#define RUN8	(	lo,
		hi,
		expr
	)

Value:

        do {                     \
        lo = 0xffffu; hi = 0u;                      \
        for (int i_ = 0; i_ < 8; i_++) {            \
            uint32_t d_ = (expr);                   \
            if (d_ < lo) lo = d_;                   \
            if (d_ > hi) hi = d_;                   \
        }                                           \
    } while (0)

◆ SHADOW_CHECK

#define SHADOW_CHECK 8

◆ SHADOW_COUNT

#define SHADOW_COUNT (sizeof(s_shadowPoints) / sizeof(s_shadowPoints[0]))

◆ SHADOW_FNS

#define SHADOW_FNS ( s )

Value:

    MAKE_SHADOW(shadow_w_##s, "lw %0, 0(%1)", s)     \
    MAKE_SHADOW(shadow_b_##s, "lbu %0, 0(%1)", s)    \
    MAKE_SHADOW(shadow_n_##s, "nop", s)

◆ SHADOW_POINTS

#define SHADOW_POINTS ( X )

Value:

X(0) X(1) X(2) X(3) X(4) X(5) X(6) X(7) X(8) X(9) X(10) X(11) X(12) \

X(14) X(16) X(20) X(24) X(32) X(40) X(48)

◆ SHADOW_REPS

#define SHADOW_REPS 16

◆ SHADOW_RUN_B

#define SHADOW_RUN_B ( s ) { BENCH(x, shadow_b_##s, M); BENCH(y, shadow_n_##s, M); a[i] = x; b[i] = y; i++; }

◆ SHADOW_RUN_W

#define SHADOW_RUN_W ( s ) { BENCH(x, shadow_w_##s, M); BENCH(y, shadow_n_##s, M); a[i] = x; b[i] = y; i++; }

◆ SW16

#define SW16

Value:

    "sw $0, 0(%0)\n"  "sw $0, 4(%0)\n"  "sw $0, 8(%0)\n"  "sw $0, 12(%0)\n" \
    "sw $0, 16(%0)\n" "sw $0, 20(%0)\n" "sw $0, 24(%0)\n" "sw $0, 28(%0)\n" \
    "sw $0, 32(%0)\n" "sw $0, 36(%0)\n" "sw $0, 40(%0)\n" "sw $0, 44(%0)\n" \
    "sw $0, 48(%0)\n" "sw $0, 52(%0)\n" "sw $0, 56(%0)\n" "sw $0, 60(%0)\n"

◆ SWEEP_LIST

#define SWEEP_LIST ( n ) n,

◆ SWEEP_PAD

#define SWEEP_PAD ".rept 8\nnop\n.endr\n"

◆ SWEEP_STR

#define SWEEP_STR ( x ) SWEEP_STR_(x)

◆ SWEEP_STR_

#define SWEEP_STR_ ( x ) #x

◆ SWEEP_TARGETS

#define SWEEP_TARGETS (sizeof(s_sweepTargets) / sizeof(s_sweepTargets[0]))

Function Documentation

◆ BENCH() [1/6]

BENCH	(	b_c	,
		timed_burst	,
		(volatile void *)	ADDR_RAM_C
	)

◆ BENCH() [2/6]

BENCH	(	b_u	,
		timed_burst	,
		(volatile void *)	ADDR_RAM_U
	)

◆ BENCH() [3/6]

BENCH	(	base	,
		timed_walk	,
		(volatile void *)	ADDR_RAM_C
	)

◆ BENCH() [4/6]

BENCH	(	nb	,
		timed_nop	,
		(volatile void *)	ADDR_ISTAT
	)

◆ BENCH() [5/6]

BENCH	(	w_c	,
		timed_write	,
		(volatile void *)	ADDR_RAM_C
	)

◆ BENCH() [6/6]

BENCH	(	w_u	,
		timed_write	,
		(volatile void *)	ADDR_RAM_U
	)

◆ CESTER_AFTER_ALL()

CESTER_AFTER_ALL	(	load_tests	,
		for(int i=0;i< 5;i++)	DELAY_REGS[i] = `s_entryDelay[i]; if (s_interruptsWereEnabled) leaveCriticalSection();`
	)

◆ CESTER_AFTER_EACH()

CESTER_AFTER_EACH	(	CESTER_TEST(	load_tests,
		testname	,
		testindex
	)

◆ cester_assert_true()

cester_assert_true ( d0<=(uint32_t) N_READS/ 8u )

◆ cester_assert_uint_eq() [1/3]

cester_assert_uint_eq	(	(uint32_t) SHADOW_REPS *	2u,
		check
	)

◆ cester_assert_uint_eq() [2/3]

cester_assert_uint_eq	(	PIN_CDROM_DELAY	,
		CDROM_DELAY
	)

◆ cester_assert_uint_eq() [3/3]

cester_assert_uint_eq	(	PIN_COM_DELAY	,
		COM_DELAY
	)

◆ CESTER_BODY()

CESTER_BODY ( static int s_interruptsWereEnabled;static uint32_t s_entryDelay;static void pinDelayRegs(void) { COM_DELAY=PIN_COM_DELAY;CDROM_DELAY=PIN_CDROM_DELAY;} static __attribute__((always_inline)) uint32_t timed_read(volatile void *p) { register uint32_t sink;uint16_t before, after;before=COUNTERS[2].value;__asm__ volatile(REP256("lw %0, 0(%1)\n") :"=&r"(sink) :"r"(p) :"memory");after=COUNTERS[2].value;(void) sink;return(uint16_t)(after - before);} static __attribute__((always_inline)) uint32_t timed_nop(volatile void *p) { register uint32_t sink;uint16_t before, after;before=COUNTERS[2].value;__asm__ volatile(REP256("nop\n") :"=&r"(sink) :"r"(p) :"memory");after=COUNTERS[2].value;(void) sink;return(uint16_t)(after - before);} static __attribute__((always_inline)) uint32_t timed_pair(volatile void *a, volatile void *b) { register uint32_t sink;uint16_t before, after;before=COUNTERS[2].value;__asm__ volatile(REP128("lw %0, 0(%1)\nlw %0, 0(%2)\n") :"=&r"(sink) :"r"(a), "r"(b) :"memory");after=COUNTERS[2].value;(void) sink;return(uint16_t)(after - before);} static __attribute__((always_inline)) uint32_t timed_write(volatile void *p) { uint16_t before, after;register volatile char *q=(volatile char *) p;before=COUNTERS[2].value;__asm__ volatile(REP256("sw $0, 0(%0)\naddiu %0, %0, 4\n") :"+r"(q) ::"memory");after=COUNTERS[2].value;return(uint16_t)(after - before);} static __attribute__((always_inline)) uint32_t timed_walk(volatile void *p) { uint16_t before, after;register volatile char *q=(volatile char *) p;before=COUNTERS[2].value;__asm__ volatile(REP256("nop\naddiu %0, %0, 4\n") :"+r"(q) ::"memory");after=COUNTERS[2].value;return(uint16_t)(after - before);} static __attribute__((always_inline)) uint32_t timed_burst(volatile void *p) { uint16_t before, after;before=COUNTERS[2].value;__asm__ volatile(REP16(SW16) ::"r"(p) :"memory");after=COUNTERS[2].value;return(uint16_t)(after - before);} typedef uint32_t(*)(volatile void *, volatile void *) PrimeFn;static void primeRow(int n, PrimeFn sync, PrimeFn base, volatile void *c, volatile void *u) { uint32_t bs=0xffffu, bb=0xffffu;for(int i=0;i< 8;i++) { uint32_t x=sync(c, u);uint32_t y=base(c, u);if(x< bs) bs=x;if(y< bb) bb=y;} ramsyscall_printf(" PRIME n=%d sync=%u base=%u delta=%d\n", n, bs, bb,(int) bs -(int) bb);} MAKE_RAW(raw_same, "sw $0, 0(%1)\nlw %0, 0(%1)\nnop\naddiu %0, %0, 1\n") MAKE_RAW(raw_other, "sw $0, 0(%1)\nlw %0, 0(%2)\nnop\naddiu %0, %0, 1\n") typedef struct { const char *name;uint32_t clr, set, flip;int nib;uint32_t val;} BusArm;static const BusArm s_busArms[5][] = { {"base", 0, 0, 0, -1, 0}, {"b8^", 0, 0, 0x100, -1, 0}, {"b9^", 0, 0, 0x200, -1, 0}, {"b10^", 0, 0, 0x400, -1, 0}, {"b11^", 0, 0, 0x800, -1, 0}, {"b8-11", 0, 0xf00, 0, -1, 0}, {"rd0", 0xf0, 0, 0, -1, 0}, {"rd15", 0, 0xf0, 0, -1, 0}, {"wr0", 0xf, 0, 0, -1, 0}, {"wr15", 0, 0xf, 0, -1, 0}, {"com0=0", 0, 0x100, 0, 0, 0}, {"com0=5", 0, 0x100, 0, 0, 5}, {"com0=15", 0, 0x100, 0, 0, 15}, {"com1=0", 0, 0x200, 0, 1, 0}, {"com1=5", 0, 0x200, 0, 1, 5}, {"com1=15", 0, 0x200, 0, 1, 15}, {"com2=0", 0, 0x400, 0, 2, 0}, {"com2=5", 0, 0x400, 0, 2, 5}, {"com2=15", 0, 0x400, 0, 2, 15}, {"com3=0", 0, 0x800, 0, 3, 0}, {"com3=5", 0, 0x800, 0, 3, 5}, {"com3=15", 0, 0x800, 0, 3, 15}, {"base", 0, 0, 0, -1, 0}, }; typedef struct { uint32_t cd, com; uint32_t cdrom, spu; } CdArm; static const CdArm s_cdArms[] = { {0x00020843u, 0x00031125u, 646, 1349}, {0x00020843u, 0x0000132cu, 646, 1790}, {0x00020943u, 0x00031125u, 709, 1349}, {0x00020943u, 0x0000132cu, 1150, 1790}, }; #define BENCH(ret, fn, p) static void report(const char *name, uint32_t raw, uint32_t base) { uint32_t abs_cc = (raw * 100u + N_READS / 2) / N_READS; uint32_t marg_cc = ((raw - base) * 100u + N_READS / 2) / N_READS; ramsyscall_printf(" %s raw256=%u abs=%u.%02u marginal=%u.%02u cyc/read\n", name, raw, abs_cc / 100u, abs_cc % 100u, marg_cc / 100u, marg_cc % 100u); } static const uint8_t s_shadowPoints[] = { SHADOW_POINTS(SWEEP_LIST) }; static const uint8_t s_intlckPoints[] = { INTLCK_POINTS(SWEEP_LIST) }; static void sweepPrint(const char *sweep, const char *op, const char *target, const uint8_t *points, unsigned count, const uint32_t *a, const uint32_t *b, unsigned reps) { ramsyscall_printf(" %s %s %s ticks:", sweep, op, target); for (unsigned i = 0; i < count; i++) ramsyscall_printf(" %u=%u", points[i], a[i]); ramsyscall_printf("\n %s %s %s base :", sweep, op, target); for (unsigned i = 0; i < count; i++) ramsyscall_printf(" %u=%u", points[i], b[i]); ramsyscall_printf("\n %s %s %s cyc :", sweep, op, target); for (unsigned i = 0; i < count; i++) { int d = (int)a[i] - (int)b[i]; unsigned m = (unsigned)(d < 0 ? -d : d); unsigned cc = (m * 100u + reps / 2u) / reps; ramsyscall_printf(" %u=%s%u.%02u", points[i], d < 0 ? "-" : "", cc / 100u, cc % 100u); } ramsyscall_printf("\n"); } static __attribute__((noinline)) uint32_t shadowSweepW(const char *target, volatile void *M, uint32_t *a, uint32_t *b) { unsigned i = 0; sweepPrint("SHADOW", "lw ", target, s_shadowPoints, SHADOW_COUNT, a, b, SHADOW_REPS); return a[SHADOW_CHECK] - b[SHADOW_CHECK]; } static __attribute__((noinline)) uint32_t shadowSweepB(const char *target, volatile void *M, uint32_t *a, uint32_t *b) { unsigned i = 0; sweepPrint("SHADOW", "lbu", target, s_shadowPoints, SHADOW_COUNT, a, b, SHADOW_REPS); return a[SHADOW_CHECK] - b[SHADOW_CHECK]; } static __attribute__((noinline)) void intlckSweepW(const char *target, volatile void *M, uint32_t *a, uint32_t *b) { unsigned i = 0; BENCH(base, intlck_w_base, M); sweepPrint("INTLCK", "lw ", target, s_intlckPoints, INTLCK_COUNT, a, b, INTLCK_REPS); } static __attribute__((noinline)) void intlckSweepB(const char *target, volatile void *M, uint32_t *a, uint32_t *b) { unsigned i = 0; BENCH(base, intlck_b_base, M); sweepPrint("INTLCK", "lbu", target, s_intlckPoints, INTLCK_COUNT, a, b, INTLCK_REPS); } static const uint16_t s_shNop[] = {35, 51, 67, 83, 99, 115, 131, 147, 163, 179, 195, 211, 227, 259, 291, 355, 419, 547, 675, 803}; static const uint16_t s_shMmio[] = {97, 113, 129, 130, 131, 147, 163, 179, 195, 211, 227, 243, 259, 291, 323, 387, 451, 579, 707, 835}; static const uint16_t s_shRam[] = {127, 143, 159, 160, 161, 162, 163, 179, 195, 211, 227, 243, 259, 291, 323, 387, 451, 579, 707, 835}; static const uint16_t s_shRomW[] = {445, 460, 475, 475, 475, 475, 475, 475, 475, 475, 475, 475, 475, 475, 475, 477, 481, 579, 707, 835}; static const uint16_t s_shRomB[] = {157, 173, 189, 190, 191, 192, 193, 194, 195, 211, 227, 243, 259, 291, 323, 387, 451, 579, 707, 835}; static const uint16_t s_shCdrom[] = {173, 188, 204, 205, 206, 207, 208, 209, 210, 211, 227, 243, 259, 291, 323, 387, 451, 579, 707, 835}; static const uint16_t s_shSpu[] = {348, 348, 363, 363, 363, 363, 363, 363, 363, 363, 363, 363, 364, 366, 368, 387, 451, 579, 707, 835}; static const uint16_t s_ilMmio[] = {443, 443, 443, 435, 427, 427, 427, 427, 427, 427, 427, 427, 427, 427, 427, 427, 427, 427, 427}; static const uint16_t s_ilScratch[] = {411, 411, 411, 411, 411, 411, 411, 411, 411, 411, 411, 411, 411, 411, 411, 411, 411, 411, 411}; static const uint16_t s_ilRam[] = {459, 459, 459, 451, 443, 435, 427, 427, 427, 427, 427, 427, 427, 427, 427, 427, 427, 427, 427}; static const uint16_t s_ilRomW[] = {619, 619, 619, 611, 603, 595, 587, 579, 571, 563, 555, 547, 531, 515, 483, 451, 427, 427, 427}; static const uint16_t s_ilRomB[] = {475, 475, 475, 467, 459, 451, 443, 435, 427, 427, 427, 427, 427, 427, 427, 427, 427, 427, 427}; static const uint16_t s_ilCdrom[] = {483, 483, 483, 475, 467, 459, 451, 443, 435, 427, 427, 427, 427, 427, 427, 427, 427, 427, 427}; static const uint16_t s_ilSpu[] = {563, 563, 563, 555, 547, 539, 531, 523, 515, 507, 499, 491, 475, 459, 427, 427, 427, 427, 427}; typedef struct { const char *name; uint32_t addr; int byte; const uint16_t *shadow, *intlck; uint32_t intlckBase; } SweepTarget; static const SweepTarget s_sweepTargets[] = { {"I_STAT ", ADDR_ISTAT, 0, s_shMmio, s_ilMmio, 427}, {"JOY_STAT ", ADDR_JOYSTAT, 0, s_shMmio, s_ilMmio, 427}, {"GPUSTAT ", ADDR_GPUSTAT, 0, s_shMmio, s_ilMmio, 427}, {"MDEC stat ", ADDR_MDECST, 0, s_shMmio, s_ilMmio, 427}, {"scratchpad", ADDR_SCRATCH, 0, s_shNop, s_ilScratch, 411}, {"RAM cached", ADDR_RAM_C, 0, s_shRam, s_ilRam, 427}, {"RAM uncach", ADDR_RAM_U, 0, s_shRam, s_ilRam, 427}, {"BIOS ROM ", ADDR_BIOS, 0, s_shRomW, s_ilRomW, 427}, {"I_STAT ", ADDR_ISTAT, 1, s_shMmio, s_ilMmio, 427}, {"RAM uncach", ADDR_RAM_U, 1, s_shRam, s_ilRam, 427}, {"BIOS ROM ", ADDR_BIOS, 1, s_shRomB, s_ilRomB, 427}, {"CD-ROM ", ADDR_CDROM, 1, s_shCdrom, s_ilCdrom, 427}, {"SPU ", ADDR_SPU, 1, s_shSpu, s_ilSpu, 427}, }; #define SWEEP_TARGETS static unsigned sweepMismatches(const char *sweep, const char *what, const SweepTarget *t, const uint8_t *points, unsigned count, const uint32_t *got, const uint16_t *row, uint32_t flat) { unsigned bad = 0; for (unsigned i = 0; i < count; i++) { uint32_t want = row ? row[i] : flat; if (got[i] == want) continue; ramsyscall_printf(" MISMATCH %s %s %s %s %u: got %u, expected %u\n", sweep, t->byte ? "lbu" : "lw ", t->name, what, points[i], got[i], want); bad++; } return bad; } )

◆ CESTER_MAYBE_TEST() [1/5]

CESTER_MAYBE_TEST	(	busDelaySweep	,
		load_tests	,
		volatile void *	rom = `(volatile void ) ADDR_BIOS;volatile void spu=(volatile void *) ADDR_SPU_ADSR;uint32_t dev2=DEV2_DELAY`,
		dev4	= `DEV4_DELAY`,
		com	= `COM_DELAY;uint32_t nlo`,
		nhi;RUN8(nlo, nhi, bus_nop(rom));ramsyscall_printf("=== bus delay sweep (N=%d, entry dev2=%08x dev4=%08x com=%08x) ===\n", N_BUS, dev2, dev4, com);ramsyscall_printf(" Format: BUSn <arm> dev=<reg> com=<reg> <access>=<min>/<max> ...\n");ramsyscall_printf(" BUSNOP nop=%u/%u\n", nlo, nhi);int	subjects = `0;uint32_t first2=0`,
		last2	= `0`,
		first4	= `0`,
		last4	= `0;uint32_t nocom2[3]={0, 0, 0}`
	)

◆ CESTER_MAYBE_TEST() [2/5]

CESTER_MAYBE_TEST	(	kseg1StoreSync	,
		load_tests	,
		volatile void *	C = (volatile void )ADDR_RAM_C; volatile void U = (volatile void *)ADDR_RAM_U; ramsyscall_printf("=== KSEG1 store sync vs primed queue depth (16 reps) ===\n"); ramsyscall_printf(" Format: PRIME n=<KSEG0 stores ahead> sync=<ticks> base=<ticks> delta=<ticks per 16>\n"); primeRow(0, prime0, pbase0, C, U); primeRow(1, prime1, pbase1, C, U); primeRow(2, prime2, pbase2, C, U); primeRow(3, prime3, pbase3, C, U); primeRow(4, prime4, pbase4, C, U); primeRow(5, prime5, pbase5, C, U); primeRow(6, prime6, pbase6, C, U);
	)

◆ CESTER_MAYBE_TEST() [3/5]

CESTER_MAYBE_TEST	(	loadCostByGap	,
		load_tests	,
		volatile void *	A = (volatile void *)ADDR_RAM_U; ramsyscall_printf("=== load cost by inter-access gap (32 reps, one uncached RAM address) ===\n"); ramsyscall_printf(" Format: GAP d=<delay loop count> load=<ticks> nop=<ticks> delta=<ticks per 32 loads>\n"); for (uint32_t d = 1; d <= 48; d++) { uint32_t bl = 0xffffu, bn = 0xffffu; for (int i = 0; i < 8; i++) { uint32_t x = gap_load(A, d); uint32_t y = gap_nop(A, d); if (x < bl) bl = x; if (y < bn) bn = y; } ramsyscall_printf(" GAP d=%u load=%u nop=%u delta=%u\n", d, bl, bn, bl > bn ? bl - bn : 0u); }
	)

◆ CESTER_MAYBE_TEST() [4/5]

CESTER_MAYBE_TEST	(	loadInterlockedByTarget	,
		load_tests	,
		ramsyscall_printf("=== load-interlocked sweep by target (%d loads, result read k instructions later) ===\n", INTLCK_REPS);ramsyscall_printf(" Format: <k>=<value>. ticks = result read, base = result not read, cyc = (ticks - base) / %d\n", INTLCK_REPS);uint32_t	a[INTLCK_COUNT],
		b;for(unsigned t=0;t< SWEEP_TARGETS;t++) { const SweepTarget st=&s_sweepTargets[t];volatile void M=(volatile void *) st->addr;if(st->byte) intlckSweepB(st->name, M, a, b);else intlckSweepW(st->name, M, a, b);unsigned bad=sweepMismatches("INTLCK", "k", st, s_intlckPoints, INTLCK_COUNT, a, st->intlck, 0);unsigned badBase=sweepMismatches("INTLCK", "base k", st, s_intlckPoints, INTLCK_COUNT, b, 0, st->intlckBase);cester_assert_uint_eq(0, bad);cester_assert_uint_eq(0, badBase);}	[INTLCK_COUNT]
	)

◆ CESTER_MAYBE_TEST() [5/5]

CESTER_MAYBE_TEST	(	onDieUniformity	,
		CESTER_MAYBE_TEST(	load_tests,
		BENCH(istat, timed_read,(volatile void ) ADDR_ISTAT);BENCH(dma, timed_read,(volatile void ) ADDR_DMA);BENCH(rcnt0, timed_read,(volatile void )&COUNTERS[0].value);BENCH(rcnt2, timed_read,(volatile void )&COUNTERS[2].value);ramsyscall_printf("=== on-die uniformity ===\n");ramsyscall_printf(" I_STAT=%u DMA=%u RCNT0=%u RCNT2=%u\n", istat, dma, rcnt0, rcnt2);cester_assert_uint_eq(istat, dma);cester_assert_uint_eq(istat, rcnt0);cester_assert_uint_eq(istat, rcnt2);
	)

◆ for() [1/2]

for ( )

◆ for() [2/2]

for ( uint32_t a = 0xbf801000u; a <= 0xbf801020u; a += 4u )

◆ pinDelayRegs()

pinDelayRegs ( )

◆ ramsyscall_printf() [1/2]

ramsyscall_printf	(	" --- saturating	burst,
		1 instr/	store
	)

◆ ramsyscall_printf() [2/2]

ramsyscall_printf ( )

◆ report() [1/4]

report	(	"burst KSEG0:"	,
		b_c	,
		nb
	)

◆ report() [2/4]

report	(	"burst KSEG1:"	,
		b_u	,
		nb
	)

◆ report() [3/4]

report	(	"store KSEG0:"	,
		w_c	,
		base
	)

◆ report() [4/4]

report	(	"store KSEG1:"	,
		w_u	,
		base
	)

Variable Documentation

◆ c0

volatile void* c0 = (volatile void *)ADDR_RAM_C

◆ c1

volatile void* c1 = (volatile void *)(ADDR_RAM_C + 4096u)

◆ d0

uint32_t d0 = stride0 > ref ? stride0 - ref : ref - stride0

◆ load_tests

load_tests

◆ mode

COUNTERS [2] mode = 0

◆ nl

uint32_t nl = 0xffffu

◆ oc

uint32_t oc = 0xffffu

◆ ou

uint32_t ou = 0xffffu

◆ s_interruptsWereEnabled

s_interruptsWereEnabled = enterCriticalSection()

◆ sc

uint32_t sc = 0xffffu

◆ su

uint32_t su = 0xffffu

◆ testindex

testindex

◆ testname

testname

◆ u0

volatile void* u0 = (volatile void *)ADDR_RAM_U

◆ u1

volatile void* u1 = (volatile void *)(ADDR_RAM_U + 4096u)

Macros

Functions

Variables

Macro Definition Documentation

◆ ADDR_BIOS

◆ ADDR_CDROM

◆ ADDR_DMA

◆ ADDR_GPUSTAT

◆ ADDR_ISTAT

◆ ADDR_JOYSTAT

◆ ADDR_MDECST

◆ ADDR_RAM_C

◆ ADDR_RAM_U

◆ ADDR_SCRATCH

◆ ADDR_SPU

◆ ADDR_SPU_ADSR

◆ BENCH

◆ BIU_CONFIG_ADDR

◆ BIU_EXPECTED

◆ CDROM_DELAY

◆ CESTER_MAYBE_TEST

◆ CESTER_NO_SIGNAL

◆ CESTER_NO_TIME

◆ COM_DELAY

◆ DELAY_REGS

◆ DEV2_DELAY

◆ DEV4_DELAY

◆ EXIT_FAILURE

◆ EXIT_SUCCESS

◆ INTLCK_COUNT

◆ INTLCK_FNS

◆ INTLCK_LEN

◆ INTLCK_POINTS

◆ INTLCK_REPS

◆ INTLCK_RUN_B

◆ INTLCK_RUN_W

◆ MAKE_BUS

◆ MAKE_GAP

◆ MAKE_INTLCK

◆ MAKE_PRIME

◆ MAKE_RAW

◆ MAKE_SHADOW

◆ MAKE_SPACED

◆ N_BUS

◆ N_LOADS

◆ N_READS

◆ PCSX_TESTS

◆ PIN_CDROM_DELAY

◆ PIN_COM_DELAY

◆ PRIME0

◆ PRIME1

◆ PRIME2

◆ PRIME3

◆ PRIME4

◆ PRIME5

◆ PRIME6

◆ REP128

◆ REP16

◆ REP256

◆ REP32

◆ REP4

◆ REP64

◆ RUN8

◆ SHADOW_CHECK

◆ SHADOW_COUNT

◆ SHADOW_FNS

◆ SHADOW_POINTS

◆ SHADOW_REPS

◆ SHADOW_RUN_B

◆ SHADOW_RUN_W

◆ SW16

◆ SWEEP_LIST

◆ SWEEP_PAD

◆ SWEEP_STR

◆ SWEEP_STR_

◆ SWEEP_TARGETS

Function Documentation

◆ BENCH() [1/6]

◆ BENCH() [2/6]

◆ BENCH() [3/6]
