timers.c File Reference

#include "common/hardware/counters.h"
#include "common/hardware/gpu.h"
#include "common/hardware/hwregs.h"
#include "common/syscalls/syscalls.h"
#include "exotic/cester.h"

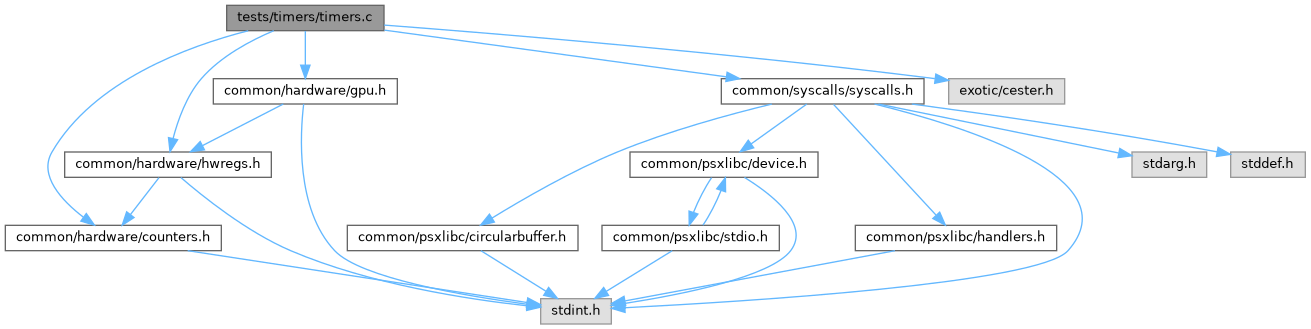

Include dependency graph for timers.c:

Macros
#define	PCSX_TESTS   0
#define	CESTER_MAYBE_TEST   CESTER_TEST
#define	CESTER_NO_SIGNAL
#define	CESTER_NO_TIME
#define	EXIT_SUCCESS   0
#define	EXIT_FAILURE   1
#define	BUSY_WAIT(n)   do { for (int _bw = (n); _bw > 0; _bw--) __asm__ volatile(""); } while(0)

Functions
	CESTER_BODY (static int s_interruptsWereEnabled;)
	CESTER_TEST (timerTargetResetHitsTarget, timer_tests, COUNTERS[2].target=0x0010;COUNTERS[2].mode=TM_RESET_TARGET;BUSY_WAIT(500);uint16_t mode=COUNTERS[2].mode;cester_assert_cmp((int)(mode &TM_HIT_TARGET), !=, 0);) CESTER_TEST(timerTargetResetNoOverflow
	BUSY_WAIT (500)
	cester_assert_int_eq (0,(int)(mode &TM_HIT_OVERFLOW))
	CESTER_TEST (timerSysclockDiv8Ratio, timer_tests, COUNTERS[2].target=0xFFFF;COUNTERS[2].mode=TM_CLK_DIV8;BUSY_WAIT(1000);uint16_t div8_val=COUNTERS[2].value;COUNTERS[2].target=0xFFFF;COUNTERS[2].mode=0;BUSY_WAIT(1000);uint16_t sys_val=COUNTERS[2].value;int ratio=sys_val/(div8_val ? div8_val :1);cester_assert_cmp(ratio, >=, 6);cester_assert_cmp(ratio,<=, 10);) CESTER_TEST(timerModeWriteResetsCounter
	BUSY_WAIT (50000)
	cester_assert_cmp ((int) before, >, 0)
	cester_assert_cmp (after,<, 10)
	CESTER_TEST (timerHitTargetFlagSetAndCleared, timer_tests, COUNTERS[2].target=0x1000;COUNTERS[2].mode=TM_RESET_TARGET;BUSY_WAIT(50000);(void) COUNTERS[2].mode;(void) COUNTERS[2].mode;COUNTERS[2].mode=TM_RESET_TARGET;BUSY_WAIT(50000);uint16_t mode1=COUNTERS[2].mode;uint16_t mode2=COUNTERS[2].mode;int flag1=(mode1 &TM_HIT_TARGET) ? 1 :0;int flag2=(mode2 &TM_HIT_TARGET) ? 1 :0;cester_assert_int_eq(1, flag1);cester_assert_int_eq(0, flag2);) CESTER_TEST(timerHitOverflowFlagSetAndCleared
	BUSY_WAIT (100000)
	cester_assert_cmp ((int)(mode1 &TM_HIT_OVERFLOW), !=, 0)
	cester_assert_int_eq (0,(int)(mode2 &TM_HIT_OVERFLOW))
	CESTER_TEST (timerIrqPulseModeBit10, timer_tests, COUNTERS[2].target=0x0080;COUNTERS[2].mode=TM_RESET_TARGET|TM_IRQ_TARGET|TM_IRQ_REPEAT;BUSY_WAIT(1000);uint16_t mode=COUNTERS[2].mode;cester_assert_cmp((int)(mode &TM_IRQ_REQUEST), !=, 0);) CESTER_TEST(timerIrqToggleModeBit10
	BUSY_WAIT (200)
	for (int i=0;i< 50;i++)
	cester_assert_int_eq (1, saw_zero)
	cester_assert_int_eq (1, saw_one)
	CESTER_TEST (timerRc2SyncMode0Stop, timer_tests, COUNTERS[2].target=0xFFFF;COUNTERS[2].mode=TM_SYNC_EN|TM_SYNC_MODE(0);BUSY_WAIT(50000);uint16_t v1=COUNTERS[2].value;BUSY_WAIT(50000);uint16_t v2=COUNTERS[2].value;cester_assert_int_eq(0,(int)(uint16_t)(v2 - v1));) CESTER_TEST(timerRc2SyncMode1Free
	cester_assert_cmp ((int)(uint16_t)(v2 - v1), >, 0)
	CESTER_TEST (timerRc2SyncMode2Free, timer_tests, COUNTERS[2].target=0xFFFF;COUNTERS[2].mode=TM_SYNC_EN|TM_SYNC_MODE(2);BUSY_WAIT(50000);uint16_t v1=COUNTERS[2].value;BUSY_WAIT(50000);uint16_t v2=COUNTERS[2].value;cester_assert_cmp((int)(uint16_t)(v2 - v1), >, 0);) CESTER_TEST(timerRc2SyncMode3Stop
	cester_assert_int_eq (0,(int)(uint16_t)(v2 - v1))
	CESTER_MAYBE_TEST (timerC0GateMode0PauseDuringHblank, timer_tests, COUNTERS[0].target=0xFFFF;COUNTERS[0].mode=TM_SYNC_EN|TM_SYNC_MODE(0);BUSY_WAIT(20000);uint16_t gated=COUNTERS[0].value;COUNTERS[0].mode=0;BUSY_WAIT(20000);uint16_t free_val=COUNTERS[0].value;cester_assert_cmp((int) gated,<,(int) free_val);) CESTER_TEST(timerC0GateMode1ResetAtHblank
	cester_assert_cmp ((int) val,<, 0x2000)
	CESTER_MAYBE_TEST (timerC0GateMode2ResetPauseOutside, timer_tests, COUNTERS[0].target=0xFFFF;COUNTERS[0].mode=TM_SYNC_EN|TM_SYNC_MODE(2);BUSY_WAIT(50000);uint16_t val=COUNTERS[0].value;cester_assert_cmp((int) val,<, 0x2000);) CESTER_TEST(timerC0GateMode3FreeAfterHblank
	if (diff< 0) diff
	cester_assert_cmp (diff,<, 0x2000)
	CESTER_TEST (timerPE2Scenario, timer_tests, COUNTERS[2].target=0x1000;COUNTERS[2].mode=TM_CLK_DIV8|TM_IRQ_REPEAT|TM_RESET_TARGET|TM_IRQ_TARGET;BUSY_WAIT(50000);uint16_t count=COUNTERS[2].value;cester_assert_cmp((int) count, >, 100);cester_assert_cmp((int) count,<, 0x1000);) CESTER_TEST(timerDotclockRate
	while (COUNTERS[1].value< 10)
	cester_assert_cmp (dots_per_line, >=, 330)
	cester_assert_cmp (dots_per_line,<=, 860)
	CESTER_BODY (static int measureDotsPerLine(int scanlines) { COUNTERS[1].target=0xFFFF;COUNTERS[1].mode=TM_CLK_EXTERNAL;COUNTERS[0].target=0xFFFF;COUNTERS[0].mode=TM_CLK_EXTERNAL;COUNTERS[1].mode=TM_CLK_EXTERNAL;COUNTERS[0].mode=TM_CLK_EXTERNAL;while(COUNTERS[1].value< scanlines) {} int dots=COUNTERS[0].value;int lines=COUNTERS[1].value;return(dots+lines/2)/lines;})
	waitVSync ()
	measureDotsPerLine (50)
	cester_assert_cmp (dpl, >=, 341 - 1)
	cester_assert_cmp (dpl,<=, 341+1)
	CESTER_MAYBE_TEST (timerDotclock256PAL, timer_tests, struct DisplayModeConfig cfg={ HR_256, VR_240, VM_PAL, CD_15BITS, VI_OFF, HRE_NORMAL };setDisplayMode(&cfg);waitVSync();waitVSync();measureDotsPerLine(50);int dpl=measureDotsPerLine(50);cester_assert_cmp(dpl, >=, 340 - 1);cester_assert_cmp(dpl,<=, 340+1);) CESTER_MAYBE_TEST(timerDotclock320NTSC
	cester_assert_cmp (dpl, >=, 426 - 1)
	cester_assert_cmp (dpl,<=, 426+1)
	CESTER_MAYBE_TEST (timerDotclock320PAL, timer_tests, struct DisplayModeConfig cfg={ HR_320, VR_240, VM_PAL, CD_15BITS, VI_OFF, HRE_NORMAL };setDisplayMode(&cfg);waitVSync();waitVSync();measureDotsPerLine(50);int dpl=measureDotsPerLine(50);cester_assert_cmp(dpl, >=, 426 - 1);cester_assert_cmp(dpl,<=, 426+1);) CESTER_MAYBE_TEST(timerDotclock512NTSC
	cester_assert_cmp (dpl, >=, 682 - 1)
	cester_assert_cmp (dpl,<=, 682+1)
	CESTER_MAYBE_TEST (timerDotclock512PAL, timer_tests, struct DisplayModeConfig cfg={ HR_512, VR_240, VM_PAL, CD_15BITS, VI_OFF, HRE_NORMAL };setDisplayMode(&cfg);waitVSync();waitVSync();measureDotsPerLine(50);int dpl=measureDotsPerLine(50);cester_assert_cmp(dpl, >=, 681 - 1);cester_assert_cmp(dpl,<=, 681+1);) CESTER_MAYBE_TEST(timerDotclock640NTSC
	cester_assert_cmp (dpl, >=, 853 - 1)
	cester_assert_cmp (dpl,<=, 853+1)
	CESTER_MAYBE_TEST (timerDotclock640PAL, timer_tests, struct DisplayModeConfig cfg={ HR_640, VR_240, VM_PAL, CD_15BITS, VI_OFF, HRE_NORMAL };setDisplayMode(&cfg);waitVSync();waitVSync();measureDotsPerLine(50);int dpl=measureDotsPerLine(50);cester_assert_cmp(dpl, >=, 851 - 1);cester_assert_cmp(dpl,<=, 851+1);) CESTER_MAYBE_TEST(timerDotclock368NTSC
	cester_assert_cmp (dpl, >=, 487 - 1)
	cester_assert_cmp (dpl,<=, 487+1)

Variables
	timer_tests
COUNTERS[2]	target = 0x0010
COUNTERS[2]	mode = TM_RESET_TARGET
void COUNTERS[2]	value
uint16_t	before = COUNTERS[2].value
int	after = COUNTERS[2].value
uint16_t	mode1 = COUNTERS[2].mode
uint16_t	mode2 = COUNTERS[2].mode
int	saw_zero = 0
int	saw_one = 0
uint16_t	v1 = COUNTERS[2].value
uint16_t	v2 = COUNTERS[2].value
uint16_t	val = COUNTERS[0].value
uint16_t	free_val = COUNTERS[0].value
uint16_t	gated = COUNTERS[0].value
int	diff = (int)free_val - (int)gated
int	dots = COUNTERS[0].value
int	lines = COUNTERS[1].value
int	dots_per_line = dots / lines
setDisplayMode &	cfg = { HR_320, VR_240, VM_NTSC, CD_15BITS, VI_OFF, HRE_NORMAL }
int	dpl = measureDotsPerLine(50)

Macro Definition Documentation

BUSY_WAIT

#define BUSY_WAIT

(

n

)

do { for (int _bw = (n); _bw > 0; _bw--) __asm__ volatile(""); } while(0)

CESTER_MAYBE_TEST

#define CESTER_MAYBE_TEST   CESTER_TEST

CESTER_NO_SIGNAL

#define CESTER_NO_SIGNAL

CESTER_NO_TIME

#define CESTER_NO_TIME

EXIT_FAILURE

#define EXIT_FAILURE   1

EXIT_SUCCESS

#define EXIT_SUCCESS   0

PCSX_TESTS

#define PCSX_TESTS   0

Function Documentation

BUSY_WAIT() [1/4]

BUSY_WAIT

(

100000

)

BUSY_WAIT() [2/4]

BUSY_WAIT

(

200

)

BUSY_WAIT() [3/4]

BUSY_WAIT

(

500

)

BUSY_WAIT() [4/4]

BUSY_WAIT

(

50000

)

cester_assert_cmp() [1/18]

cester_assert_cmp	(	(int)	before,
		0
	)

cester_assert_cmp() [2/18]

cester_assert_cmp

(

(int)

val

)

cester_assert_cmp() [3/18]

cester_assert_cmp	(	(int)(mode1 &TM_HIT_OVERFLOW)	,
		!	,
		0
	)

cester_assert_cmp() [4/18]

cester_assert_cmp	(	(int)(uint16_t)(v2 - v1)	,
		0
	)

cester_assert_cmp() [5/18]

cester_assert_cmp

(

after

)

cester_assert_cmp() [6/18]

cester_assert_cmp

(

diff

)

cester_assert_cmp() [7/18]

cester_assert_cmp	(	dots_per_line	,
		>=	,
		330
	)

cester_assert_cmp() [8/18]

cester_assert_cmp	(	dots_per_line	,
		<=	,
		860
	)

cester_assert_cmp() [9/18]

cester_assert_cmp	(	dpl	,
		>=	,
		341 -	1
	)

cester_assert_cmp() [10/18]

cester_assert_cmp	(	dpl	,
		>=	,
		426 -	1
	)

cester_assert_cmp() [11/18]

cester_assert_cmp	(	dpl	,
		>=	,
		487 -	1
	)

cester_assert_cmp() [12/18]

cester_assert_cmp	(	dpl	,
		>=	,
		682 -	1
	)

cester_assert_cmp() [13/18]

cester_assert_cmp	(	dpl	,
		>=	,
		853 -	1
	)

cester_assert_cmp() [14/18]

cester_assert_cmp	(	dpl	,
		<=	,
		341+	1
	)

cester_assert_cmp() [15/18]

cester_assert_cmp	(	dpl	,
		<=	,
		426+	1
	)

cester_assert_cmp() [16/18]

cester_assert_cmp	(	dpl	,
		<=	,
		487+	1
	)

cester_assert_cmp() [17/18]

cester_assert_cmp	(	dpl	,
		<=	,
		682+	1
	)

cester_assert_cmp() [18/18]

cester_assert_cmp	(	dpl	,
		<=	,
		853+	1
	)

cester_assert_int_eq() [1/5]

cester_assert_int_eq	(	0	,
		(int)(mode &TM_HIT_OVERFLOW)
	)

cester_assert_int_eq() [2/5]

cester_assert_int_eq	(	0	,
		(int)(mode2 &TM_HIT_OVERFLOW)
	)

cester_assert_int_eq() [3/5]

cester_assert_int_eq	(	0	,
		(int)(uint16_t)(v2 - v1)
	)

cester_assert_int_eq() [4/5]

cester_assert_int_eq	(	1	,
		saw_one
	)

cester_assert_int_eq() [5/5]

cester_assert_int_eq	(	1	,
		saw_zero
	)

CESTER_BODY() [1/2]

CESTER_BODY

(

static int measureDotsPerLine(int scanlines) { COUNTERS[1].target=0xFFFF;COUNTERS[1].mode=TM_CLK_EXTERNAL;COUNTERS[0].target=0xFFFF;COUNTERS[0].mode=TM_CLK_EXTERNAL;COUNTERS[1].mode=TM_CLK_EXTERNAL;COUNTERS[0].mode=TM_CLK_EXTERNAL;while(COUNTERS[1].value< scanlines) {} int dots=COUNTERS[0].value;int lines=COUNTERS[1].value;return(dots+lines/2)/lines;}

)

CESTER_BODY() [2/2]

CESTER_BODY

(

static int s_interruptsWereEnabled;

)

CESTER_MAYBE_TEST() [1/6]

CESTER_MAYBE_TEST	(	timerC0GateMode0PauseDuringHblank	,
		timer_tests	,
		COUNTERS.	target[0] = 0xFFFF;  COUNTERS[0].mode = TM_SYNC_EN | TM_SYNC_MODE(0); BUSY_WAIT(20000); uint16_t gated = COUNTERS[0].value; COUNTERS[0].mode = 0; BUSY_WAIT(20000); uint16_t free_val = COUNTERS[0].value;  cester_assert_cmp((int)gated, <, (int)free_val);
	)

CESTER_MAYBE_TEST() [2/6]

CESTER_MAYBE_TEST	(	timerC0GateMode2ResetPauseOutside	,
		timer_tests	,
		COUNTERS.	target[0] = 0xFFFF; COUNTERS[0].mode = TM_SYNC_EN | TM_SYNC_MODE(2); BUSY_WAIT(50000); uint16_t val = COUNTERS[0].value;  cester_assert_cmp((int)val, <, 0x2000);
	)

CESTER_MAYBE_TEST() [3/6]

CESTER_MAYBE_TEST	(	timerDotclock256PAL	,
		timer_tests	,
		struct DisplayModeConfig	cfg = { HR_256, VR_240, VM_PAL, CD_15BITS, VI_OFF, HRE_NORMAL }; setDisplayMode(&cfg); waitVSync(); waitVSync(); measureDotsPerLine(50); int dpl = measureDotsPerLine(50); cester_assert_cmp(dpl, >=, 340 - 1); cester_assert_cmp(dpl, <=, 340 + 1);
	)

CESTER_MAYBE_TEST() [4/6]

CESTER_MAYBE_TEST	(	timerDotclock320PAL	,
		timer_tests	,
		struct DisplayModeConfig	cfg = { HR_320, VR_240, VM_PAL, CD_15BITS, VI_OFF, HRE_NORMAL }; setDisplayMode(&cfg); waitVSync(); waitVSync(); measureDotsPerLine(50); int dpl = measureDotsPerLine(50); cester_assert_cmp(dpl, >=, 426 - 1); cester_assert_cmp(dpl, <=, 426 + 1);
	)

CESTER_MAYBE_TEST() [5/6]

CESTER_MAYBE_TEST	(	timerDotclock512PAL	,
		timer_tests	,
		struct DisplayModeConfig	cfg = { HR_512, VR_240, VM_PAL, CD_15BITS, VI_OFF, HRE_NORMAL }; setDisplayMode(&cfg); waitVSync(); waitVSync(); measureDotsPerLine(50); int dpl = measureDotsPerLine(50); cester_assert_cmp(dpl, >=, 681 - 1); cester_assert_cmp(dpl, <=, 681 + 1);
	)

CESTER_MAYBE_TEST() [6/6]

CESTER_MAYBE_TEST	(	timerDotclock640PAL	,
		timer_tests	,
		struct DisplayModeConfig	cfg = { HR_640, VR_240, VM_PAL, CD_15BITS, VI_OFF, HRE_NORMAL }; setDisplayMode(&cfg); waitVSync(); waitVSync(); measureDotsPerLine(50); int dpl = measureDotsPerLine(50); cester_assert_cmp(dpl, >=, 851 - 1); cester_assert_cmp(dpl, <=, 851 + 1);
	)

CESTER_TEST() [1/7]

CESTER_TEST	(	timerHitTargetFlagSetAndCleared	,
		timer_tests	,
		COUNTERS.	target[2] = 0x1000; COUNTERS[2].mode = TM_RESET_TARGET; BUSY_WAIT(50000); (void)COUNTERS[2].mode; (void)COUNTERS[2].mode;  COUNTERS[2].mode = TM_RESET_TARGET; BUSY_WAIT(50000); uint16_t mode1 = COUNTERS[2].mode; uint16_t mode2 = COUNTERS[2].mode; int flag1 = (mode1 & TM_HIT_TARGET) ? 1 : 0; int flag2 = (mode2 & TM_HIT_TARGET) ? 1 : 0;  cester_assert_int_eq(1, flag1);  cester_assert_int_eq(0, flag2);
	)

CESTER_TEST() [2/7]

CESTER_TEST	(	timerIrqPulseModeBit10	,
		timer_tests	,
		COUNTERS.	target[2] = 0x0080; COUNTERS[2].mode = TM_RESET_TARGET | TM_IRQ_TARGET | TM_IRQ_REPEAT; BUSY_WAIT(1000); uint16_t mode = COUNTERS[2].mode;  cester_assert_cmp((int)(mode & TM_IRQ_REQUEST), !=, 0);
	)

CESTER_TEST() [3/7]

CESTER_TEST	(	timerPE2Scenario	,
		timer_tests	,
		COUNTERS.	target[2] = 0x1000; COUNTERS[2].mode = TM_CLK_DIV8 | TM_IRQ_REPEAT | TM_RESET_TARGET | TM_IRQ_TARGET;  BUSY_WAIT(50000); uint16_t count = COUNTERS[2].value;  cester_assert_cmp((int)count, >, 100); cester_assert_cmp((int)count, <, 0x1000);
	)

CESTER_TEST() [4/7]

CESTER_TEST	(	timerRc2SyncMode0Stop	,
		timer_tests	,
		COUNTERS.	target[2] = 0xFFFF; COUNTERS[2].mode = TM_SYNC_EN | TM_SYNC_MODE(0); BUSY_WAIT(50000); uint16_t v1 = COUNTERS[2].value; BUSY_WAIT(50000); uint16_t v2 = COUNTERS[2].value; cester_assert_int_eq(0, (int)(uint16_t)(v2 - v1));
	)

CESTER_TEST() [5/7]

CESTER_TEST	(	timerRc2SyncMode2Free	,
		timer_tests	,
		COUNTERS.	target[2] = 0xFFFF; COUNTERS[2].mode = TM_SYNC_EN | TM_SYNC_MODE(2); BUSY_WAIT(50000); uint16_t v1 = COUNTERS[2].value; BUSY_WAIT(50000); uint16_t v2 = COUNTERS[2].value; cester_assert_cmp((int)(uint16_t)(v2 - v1), >, 0);
	)

CESTER_TEST() [6/7]

CESTER_TEST	(	timerSysclockDiv8Ratio	,
		timer_tests	,
		COUNTERS.	target[2] = 0xFFFF; COUNTERS[2].mode = TM_CLK_DIV8; BUSY_WAIT(1000); uint16_t div8_val = COUNTERS[2].value;  COUNTERS[2].target = 0xFFFF; COUNTERS[2].mode = 0; BUSY_WAIT(1000); uint16_t sys_val = COUNTERS[2].value;  int ratio = sys_val / (div8_val ? div8_val : 1); cester_assert_cmp(ratio, >=, 6); cester_assert_cmp(ratio, <=, 10);
	)

CESTER_TEST() [7/7]

CESTER_TEST	(	timerTargetResetHitsTarget	,
		timer_tests	,
		COUNTERS.	target[2] = 0x0010; COUNTERS[2].mode = TM_RESET_TARGET; BUSY_WAIT(500); uint16_t mode = COUNTERS[2].mode;  cester_assert_cmp((int)(mode & TM_HIT_TARGET), !=, 0);
	)

for()

for

(

)

if()

if

(

)

measureDotsPerLine()

measureDotsPerLine

(

50

)

waitVSync()

waitVSync

(

)

while()

while

(

)

Variable Documentation

after

int after = COUNTERS[2].value

before

uint16_t before = COUNTERS[2].value

cfg

setDisplayMode & cfg = { HR_320, VR_240, VM_NTSC, CD_15BITS, VI_OFF, HRE_NORMAL }

diff

int diff = (int)free_val - (int)gated

dots

int dots = COUNTERS[0].value

dots_per_line

int dots_per_line = dots / lines

dpl

int dpl = measureDotsPerLine(50)

free_val

uint16_t free_val = COUNTERS[0].value

gated

uint16_t gated = COUNTERS[0].value

lines

int lines = COUNTERS[1].value

mode

COUNTERS [0] mode = TM_RESET_TARGET

mode1

uint16_t mode1 = COUNTERS[2].mode

mode2

uint16_t mode2 = COUNTERS[2].mode

saw_one

int saw_one = 0

saw_zero

int saw_zero = 0

target

COUNTERS [0] target = 0x0010

timer_tests

timer_tests

v1

uint16_t v1 = COUNTERS[2].value

v2

uint16_t v2 = COUNTERS[2].value

val

uint16_t val = COUNTERS[0].value

value

void COUNTERS [2] value
