link-ft232h.h File Reference

#include <stdint.h>
#include "common/hardware/hwregs.h"

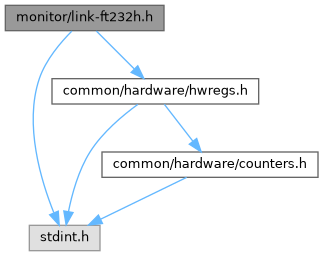

Include dependency graph for link-ft232h.h:

Go to the source code of this file.

Macros
#define	MONITOR_LINK_IS_STREAM   1
#define	MONITOR_FT232H_DATA   0xbf000000
#define	MONITOR_FT232H_STATUS   0xbf100000
#define	MONITOR_FT232H_EXP1_CONFIG   ((23 << 16) | 0x2422) /* 8 MB, psx232h's timing */
#define	FT232H_DATA   (*(volatile uint8_t *)(MONITOR_FT232H_DATA))
#define	FT232H_STATUS   (*(volatile uint8_t *)(MONITOR_FT232H_STATUS))
#define	FT232H_RXF   0x01
#define	FT232H_TXE   0x02
#define	LINK_RX_STAT_ADDR   MONITOR_FT232H_STATUS
#define	LINK_RX_STAT_LOAD   "lbu"
#define	LINK_RX_STAT_BIT   FT232H_RXF

Macro Definition Documentation

FT232H_DATA

#define FT232H_DATA   (*(volatile uint8_t *)(MONITOR_FT232H_DATA))

FT232H_RXF

#define FT232H_RXF   0x01

FT232H_STATUS

#define FT232H_STATUS   (*(volatile uint8_t *)(MONITOR_FT232H_STATUS))

FT232H_TXE

#define FT232H_TXE   0x02

LINK_RX_STAT_ADDR

#define LINK_RX_STAT_ADDR   MONITOR_FT232H_STATUS

LINK_RX_STAT_BIT

#define LINK_RX_STAT_BIT   FT232H_RXF

LINK_RX_STAT_LOAD

#define LINK_RX_STAT_LOAD   "lbu"

MONITOR_FT232H_DATA

#define MONITOR_FT232H_DATA   0xbf000000

MONITOR_FT232H_EXP1_CONFIG

#define MONITOR_FT232H_EXP1_CONFIG   ((23 << 16) | 0x2422) /* 8 MB, psx232h's timing */

MONITOR_FT232H_STATUS

#define MONITOR_FT232H_STATUS   0xbf100000

MONITOR_LINK_IS_STREAM

#define MONITOR_LINK_IS_STREAM   1
